APV-2 pump seals replace Vulcan type 26 series and AES P06 series
Operation Parameters
Temperature: -20ºC to +180ºC
Pressure: ≤2.5MPa
Speed: ≤15m/s
Combination Materials
Stationary Ring: Ceramic, Silicon Carbide, TC
Rotary Ring: Carbon, Silicon Carbide
Secondary Seal: NBR, EPDM, Viton, PTFE
Spring and Metal Parts: Steel
Applications
Clean water
sewage water
oil and other moderately corrosive fluids

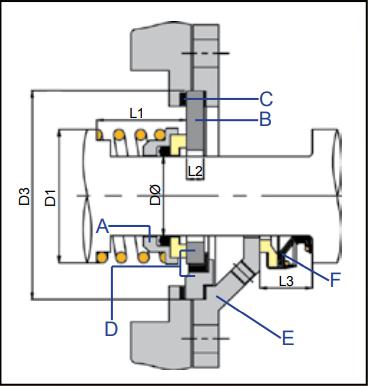

APV-2 data sheet of dimension
