APV World Series APV-3 double mechanical seal replaces Vulcan type 16
Combination materials
Rotary Face
Silicon carbide (RBSIC)
Carbon graphite resin impregnated
Stationary Seat
Silicon carbide (RBSIC)
Stainless Steel (SUS316)
Auxiliary Seal
Ethylene-Propylene-Diene (EPDM)
Fluorocarbon-Rubber (Viton)
Spring
Stainless Steel (SUS304)
Stainless Steel (SUS316)
Metal Parts
Stainless Steel (SUS304)
Stainless Steel (SUS316)

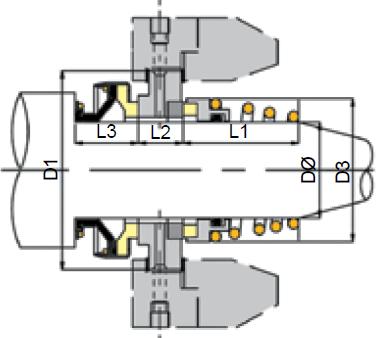

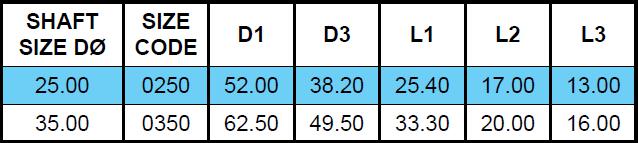

APV-3 data sheet of dimension(mm)
