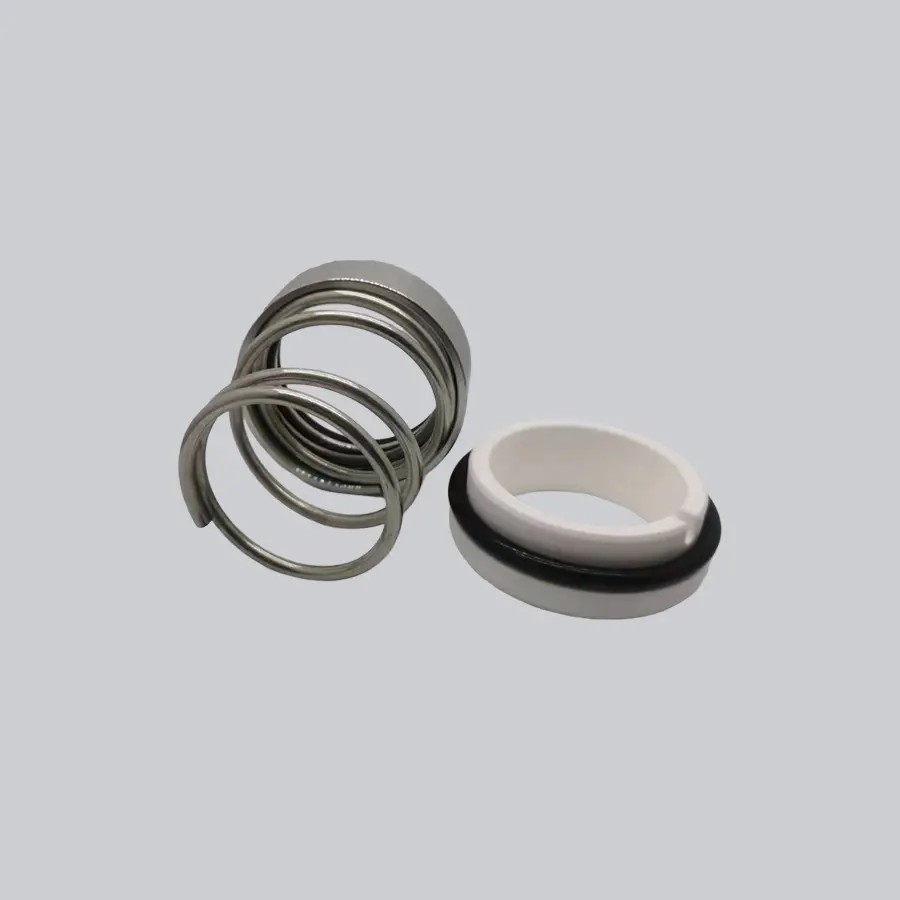

Conical ‘O’-Ring Mounted Mechanical Seals Vulcan Type 8 DIN
Features
Inserted Rotary Face
Being ‘O’-ring mounted, it is possible to select from a wider range of secondary seal materials
Robust, non-clogging, self adjusting and durable giving highly effective performance
Conical Spring Shaft Mechanical Seal
To suit European or DIN fitting dimensions
Operating Limits
Temperature: -30°C to +150°C
Pressure: Up to 12.6 bar (180 psi)
Limits are for guidance only. Product performance is dependent on materials and other operating conditions.
Combination material
Rotary face:Carbon/Sic/Tc
Stat Ring:Carbon/Ceramic/Sic/Tc
