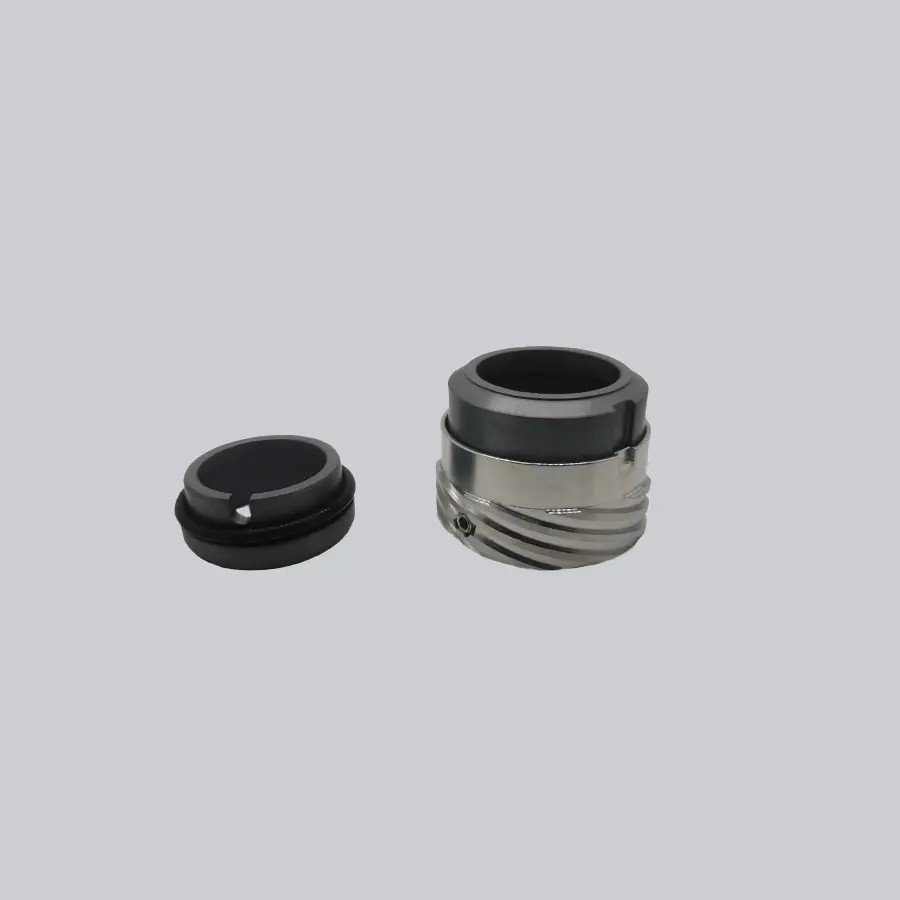

Eagle burgmann multi spring H75F mechanical seals for water pump
| Detail Information | |||
| Material: | SIC SIC FKM | Function: | For Oil Pump, Water Pump |
| Transport Package: | Box | HS Code: | 848420090 |
| Specification: | Burgmann Pump Mechanical Seal H7N | Certificate: | ISO9001 |
| Type: | For Mechanical Shaft Seal H7N | Standard: | Standard |
| Style: | Burgmann Type H75 O -ring Mechanical Seal | Product Name: | H75 Burgmann Mechanical Seals |
Operational Conditions
Wave Spring Mechanical Seal
Self cleaning effect
Short Installation length possible (G16)
Temperature: -20 – 180℃
Speed: ≤20m/s
Pressure: ≤2.5 Mpa
Wave Spring Seal Burgmann-H7N Can be widely used in Clean water, sewage water, Oil and other moderately corrosive fluids
Combination material
Rotary face: Stainless steel/Carbon/Sic/TC
Stat Ring: Carbon/Sic/TC
Seat Type: Standard SRS-S09, Alternative SRS-S04/S06/S92/S13
SRS-RH7N have pump ring design which called H7F
Performance Capabilities
| Temperature | -30℃ to 200℃, dependent on the elastomer |
| Pressure | Up to 16 bar |
| Speed | Up to 20 m/s |
| End play/axial float allowance | ±0.1mm |
| Size | 14mm to 100mm |
| Brand | JR |
| Face | Carbon, SiC, TC |
| Seat | Carbon, SiC, TC |
| Elastomer | NBR, EPDM, etc. |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
| Idividual Packing | Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton. |
