EMU Mechanical Seal 35/50/75mm for Wilo EMU Pump
Operational Conditions:
Working Temperature:-30℃ — 200℃
Working pressure: ≤ 2.5MPA
Linear Speed: ≤ 15m/s
Combination materials
Stationary Ring (Carbon/SIC/TC)
Rotary Ring (SIC/TC/Carbon)
Secondary Seal (NBR/EPDM/VITON)
Spring & Other Parts (SUS304/SUS316)

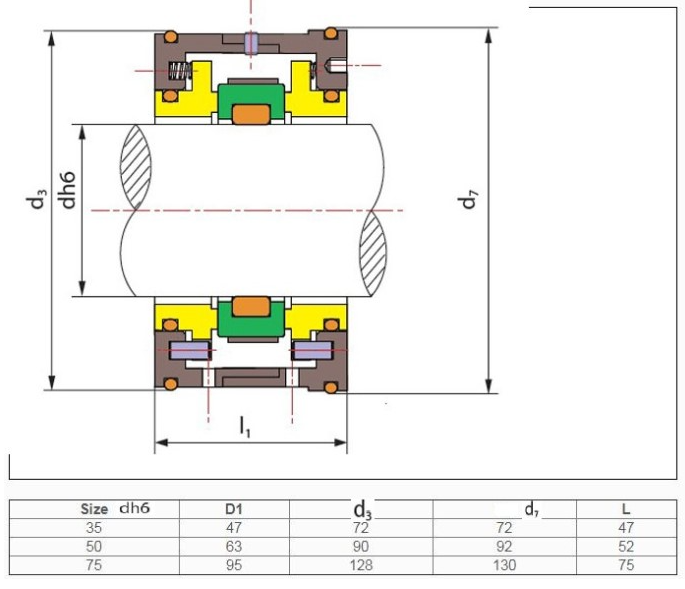

EMU data sheet of dimension(mm)
