IMO pump marine shaft seals ACE ACG 194030, 189964
Product Parameters
22mm marine shaft seals Imo Ace 3 Pump Shaft Seal 194030 Mechanical Seal | ||
Operational Conditions | Size | Material |
Temperature: -40℃ to 220℃, depend on o-ring material | 22mm | Face: Carbon, SiC, TC |
Pressure: Up to 25 bar | Seat: SiC, TC | |
Speed: Up to 25 m/s | O-rings: NBR, EPDM, VIT | |
End Play /axial float Allow: ±1.0mm | Metal parts: SS304, SS316 | |
We can provide follow IMO ACE 3 generation pump spare parts.

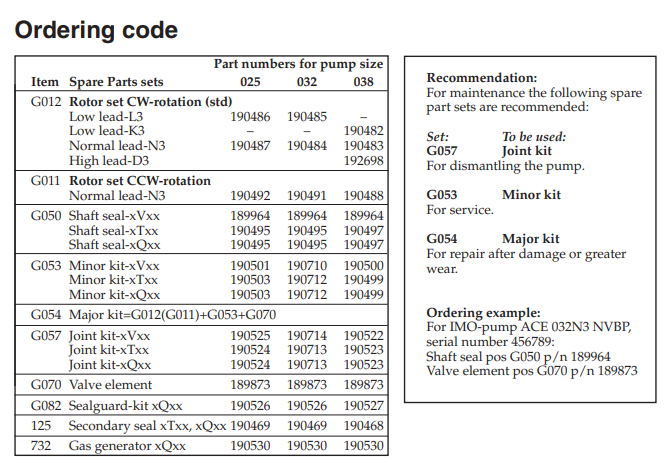

Code: 190497,190495,194030,190487,190484,190483,189783.
IMO ACE 3 pump spare parts secondary seal 190468,190469.
pump mechanical seal parts-22mm
triple rotors screw pump
fuel oil supply system for ship in marine
ACE ACG series
high temp. mechanical seals.
Imo pump mechanical seal parts-22mm
1. IMO ACE025L3 pump to suit mechanical shaft seal 195C-22mm, Imo 190495 (wave spring)
2. IMO-190497 ACE pump mechanical seal for marine industry, Imo 190497 (coil spring)
3. IMO ACE 3 pump spare parts shaft seal 194030, Imo 194030 (coil spring)
