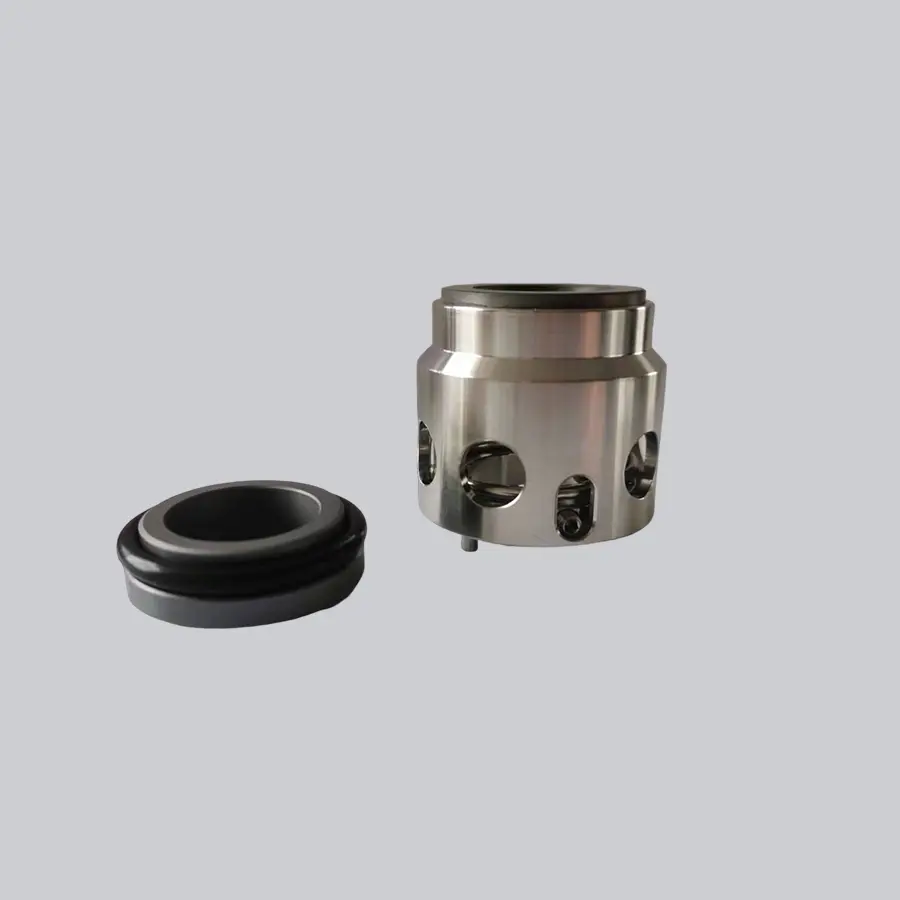

LWR-4 Mechanical seals 22mm/ 26mm for Lowara pump SV and e-SV series

Mechanical seals compatible with different models of Lowara® pumps. Different types in various diameters and combinations of materials: graphite-aluminium oxide, silicon carbide-silicon carbide, combined with different types of elastomers: NBR, FKM and EPDM.

Size: 22, 26mm

Temperature: -30℃ to 200℃, dependent on the elastomer

Pressure：Up to 8 bar

Speed: up to 10m/s

End Play /axial float Allowance: ±1.0mm

Material:

Face: SIC/TC

Seat: SIC/TC

Elastomer: NBR EPDM FEP FFM

Metal parts: S304 SS316
