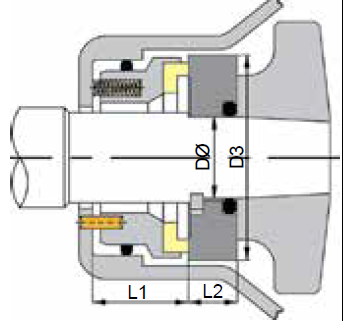

mechanical seal for Inoxpa SLR, Jabsco & Prolac Pumps replace Vulcan 50
Product parameter
| Temperature | -30℃ to 200℃, dependent on the elastomer |
| Pressure | Up to 10 bar |
| Speed | Up to 15 m/s |
| End play/axial float allowance | ±0.1mm |

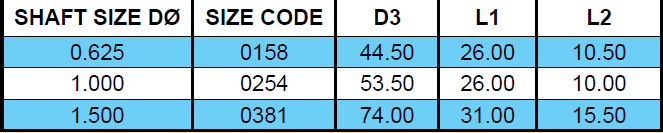

| Size | 15.8mm 25.4mm 38.1mm |
| Face | Carbon, SIC, TC |
| Seat | SUS304, SUS316, SIC, TC |
| Elastomer | NBR, EPDM, VITON etc. |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
