W502 John Crane Type 502 Replacement Unitized Elastomer Bellows Seal For Pumps
Product Features
With full enclosed elastomer bellows design
Insensitive to shaft play and run out
Bellows should not twist due to bi-directional and robust drive
Single seal and single spring
Conform with DIN24960 standard
Design Features
• Completely assembled one-piece design for fast installation
• Unitized design incorporates positive retainer/key drive from bellows
• Non-clogging, single coil spring provides greater dependability than multiple spring designs. Will not be affected by build-up of solids
• Full convolution elastomeric bellows seal designed for confined spaces and limited gland depths. Self-aligning feature compensates for excessive shaft end play and run-out
Recommended applications
• Paints and inks
• Water
• Weak acids
• Chemical processing
• Conveyor and industrial equipment
• Cryogenics
• Food processing
• Gas compression
• Industrial blowers and fans
• Marine
• Mixers and agitators
• Nuclear service
• Offshore
• Oil and refinery
• Paint and ink
• Petrochemical processing
• Pharmaceutical
• Pipeline
• Power generation
• Pulp and paper
• Water systems
• Wastewater
• Treatment
• Water desalination
Operating range
Shaft diameter: d1=14…100 mm
• Temperature: -40°C to +205°C (depending on materials used)
• Pressure: up to 40 bar g
• Speed: up to 13 m/s
Notes: The range of preesure,temperature and speed is depend on seals combination materials
Combination material
Rotary Face
Carbon graphite resin impregnated
Silicon carbide (RBSIC)
Hot-Pressing Carbon
Stationary Seat
Aluminium oxide (Ceramic)
Silicon carbide (RBSIC)
Tungsten carbide
Auxiliary Seal
Nitrile-Butadiene-Rubber (NBR)
Fluorocarbon-Rubber (Viton)
Ethylene-Propylene-Diene (EPDM)
Spring
Stainless Steel (SUS304)
Metal Parts
Stainless Steel (SUS304)

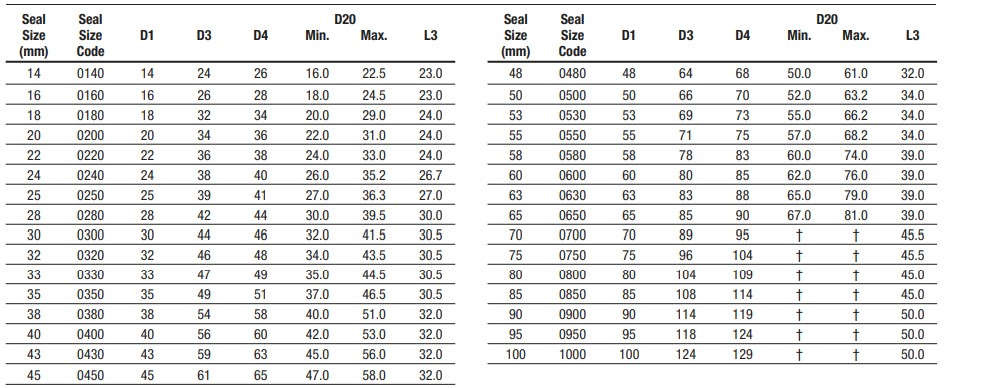

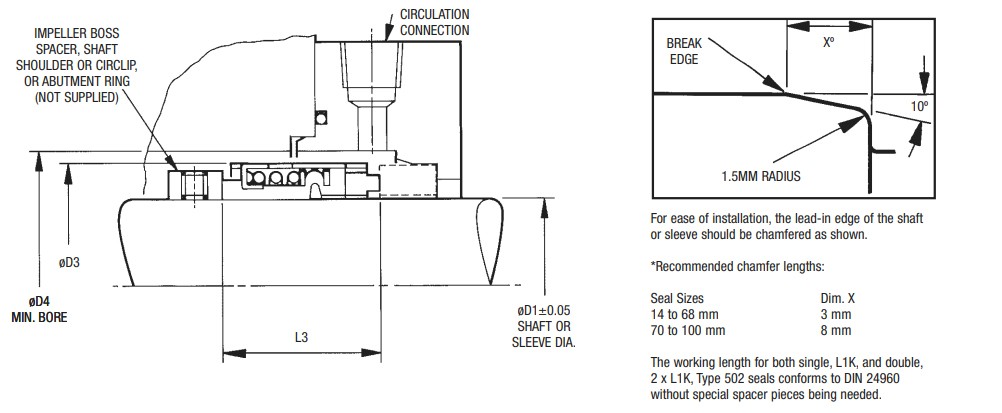

W502 Dimension Data Sheet (mm)
