W60 Rubber bellows Mechanical Seal replace Vulcan type 60
Features
• Rubber bellows mechanical seal
• Unbalanced
• Single spring
• Independent of direction of rotation
Recommended applications
• Water and waste water technology
• Pool and spa applications
• Household appliances
• Swimming pool pumps
• Cold water pumps
• Pumps for home and garden
Operating range
Shaft diameter: d1 = 15 mm, 5/8”, 3/4”, 1″
Pressure: p1*= 12 bar (174 PSI)
Temperature: t* = -20 °C … +120 °C (-4 °F … +248 °F
Sliding velocity: vg = 10 m/s (33 ft/s)
* Dependent on medium, size and material
Combination material
Seal face
Carbon graphite resin impregnated , Carbon graphite, full carbon Silicon carbide
Seat
Ceramic, Silicon, carbide
Elastomers
NBR , EPDM , FKM,VITON
Metal parts
SS304, SS316

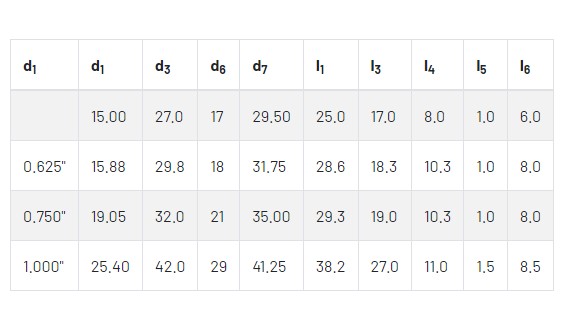

W60 Data Sheet of Dimension (mm)
Our advantages
Customization
We have a strong R&D team, and we can develop and produce products according to the drawings or samples the customers offered,
Low Cost
We are production factory, compared with the trading company, we has great advantages
High Quality
Strict material control and perfect testing equipment to ensure product quality
Multiformity
Products include slurry pump mechanical seal, agitator mechanical seal, paper industry mechanical seal, dyeing machine mechanical seal etc.
Good Service
We focus on developing high-quality products for top-end markets. Our products are in line with international standards
How to order
In ordering mechanical seal, you are requested to give us complete information as specified below:
1. Purpose: For which equipments or what factory use.
2. Size: Diameter of the seal in millimeter or inches
3. Material: what kind of material, strength requirement.
4. Coating: stainless steel, ceramic, hard alloy or silicon carbide
5. Remarks: Shipping marks and any other special requirement.
