WCONII High quality Cartridge Mechanical Seal Replace AES CONII
Operational Conditions
Temperature: -20℃ to +210℃
Pressure: ≤2.5MPa
Speed: ≤15m/s
Recommended applications
Clean water,
Sewage water
Oil and other moderately corrosive fluid
Combination material
Stationary Ring：Silicon Carbide, Carbon ,TC,
Rotary Ring：Carbon ,Silicon Carbide, TC
Secondary Seal：EPDM, Viton, Kalrez
Spring and Metal Parts：SUS304, SUS316

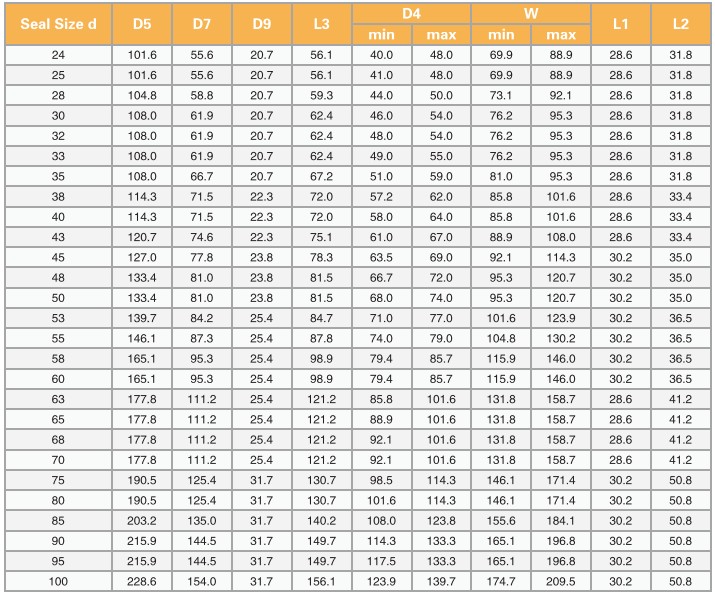

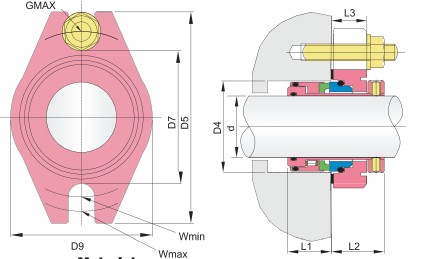

WCONII Data Sheet of Dimension (mm)
