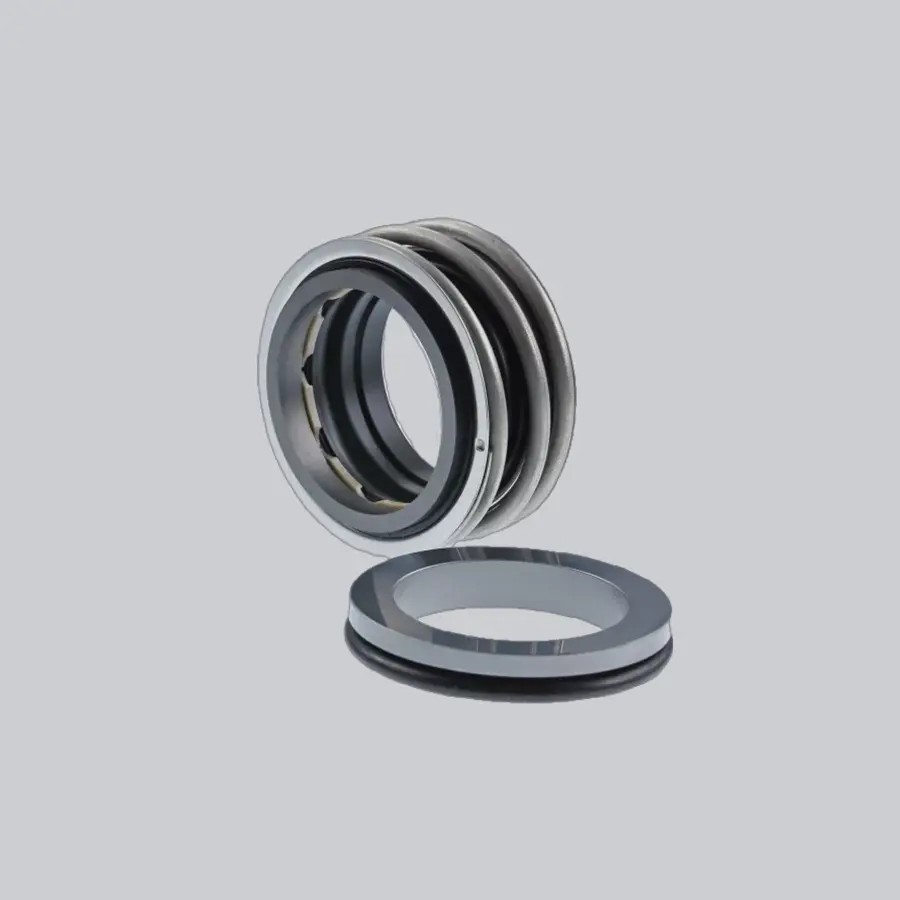

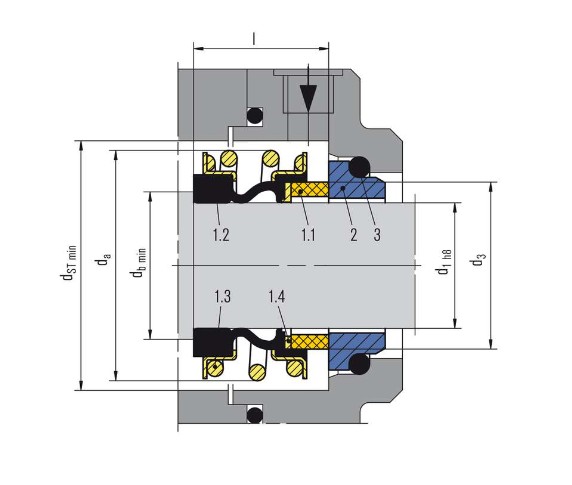

WEMG1 rubber bellow mechanical shaft seal for water pump

Features

For plain shafts
Single and dual seal
Elastomer bellows rotating
Balanced
Independent of direction of rotation test

Advantages

100 % compatible with MG1

Small outer diameter of bellows support (dbmin) enables direct retaining ring support, or smaller spacer rings
Optimal alignment characteristic through self-cleaning of disk/shaft
Improved centering across entire pressure operating range

No torsion on bellows
Shaft protection over entire seal length
Protection of seal face during installation due to special bellows design
Insensitive to shaft deflections due to large axial movement ability
Suitable for low-end sterile applications

Recommended applications

Fresh water supply
Building services engineering
Waste water technology
Food technology
Sugar production
Pulp and paper industry
Oil industry
Petrochemical industry
Chemical industry
Water, waste water, slurries(solids up to 5 % by weight)
Pulp (up to 4 % otro)
Latex
Dairies, beverages
Sulfide slurries
Chemicals
Oils
Chemical standard pumps
Helical screw pumps
Stock pumps
Circulating pumps
Submersible pumps
Water and waste water pumps

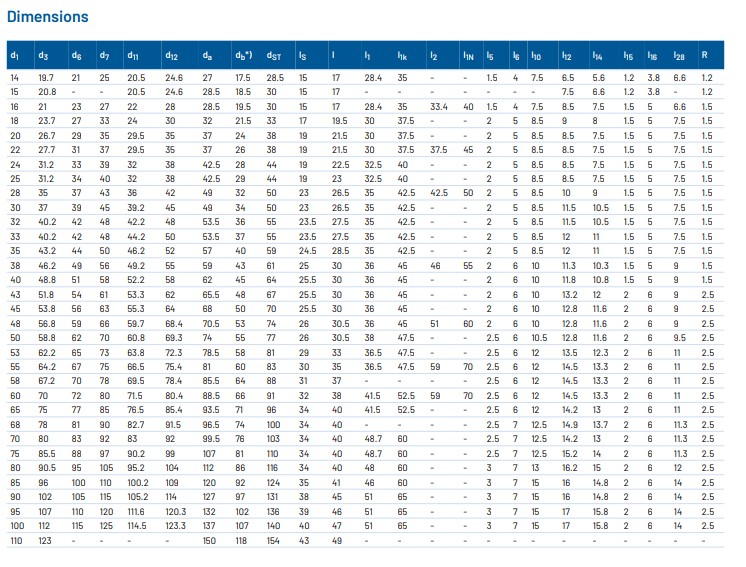

Operating range

Shaft diameter:
d1 = 14 … 110 mm (0.55″ … 4.33″)
Pressure: p1 = 18 bar (261 PSI),
vacuum … 0.5 bar (7.25 PSI),
up to 1 bar (14.5 PSI) with seat locking
Temperature: t = -20 °C … +140 °C
(-4 °F … +284 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
Admissible axial movement: ±2.0 mm (±0.08″)

Combination material

Stationary Ring: Ceramic, Carbon, SIC, SSIC, TC
Rotary Ring: Ceramic, Carbon, SIC, SSIC, TC
Secondary Seal: NBR/EPDM/Viton
Spring and Metal Parts: SS304/SS316
