Cartridge seals are put together before use. They are mechanical devices. They stop fluids from leaking out of pumps. They also stop leaks in other machines that spin. Cartridge seals help keep equipment safe. They also make machines work well. Many pumps break because seals do not work right. About 13% of seal failures are caused by pump bearing problems. Victor is a trusted maker. Victor makes strong mechanical seals. These seals protect pumps in hard places.
Key Takeaways
- Cartridge seals stop leaks in pumps and machines. This helps keep things safe and working well. Their pre-assembled design makes them easy to put in. This saves time and helps avoid mistakes.
- Using cartridge seals can save a lot of money. They help lower repair costs and reduce downtime.
- There are different types of cartridge seals. Some are single and some are double. These types work for many jobs and conditions.
- Victor is a trusted company. They make high-quality cartridge seals. These seals help machines work better and last longer.
Cartridge seals overview

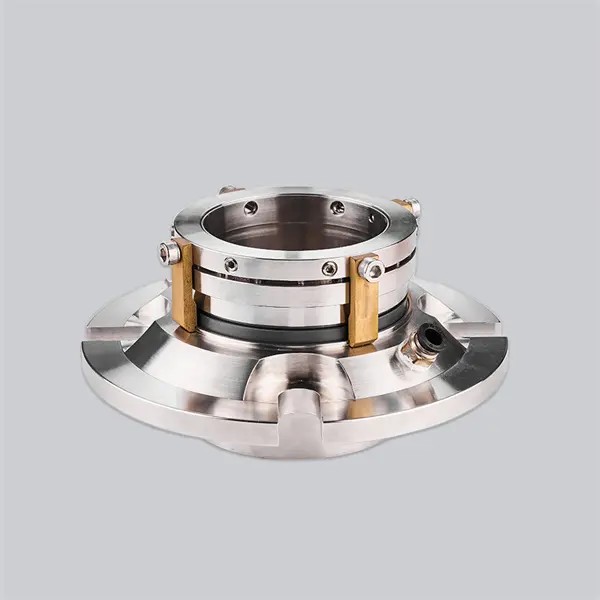

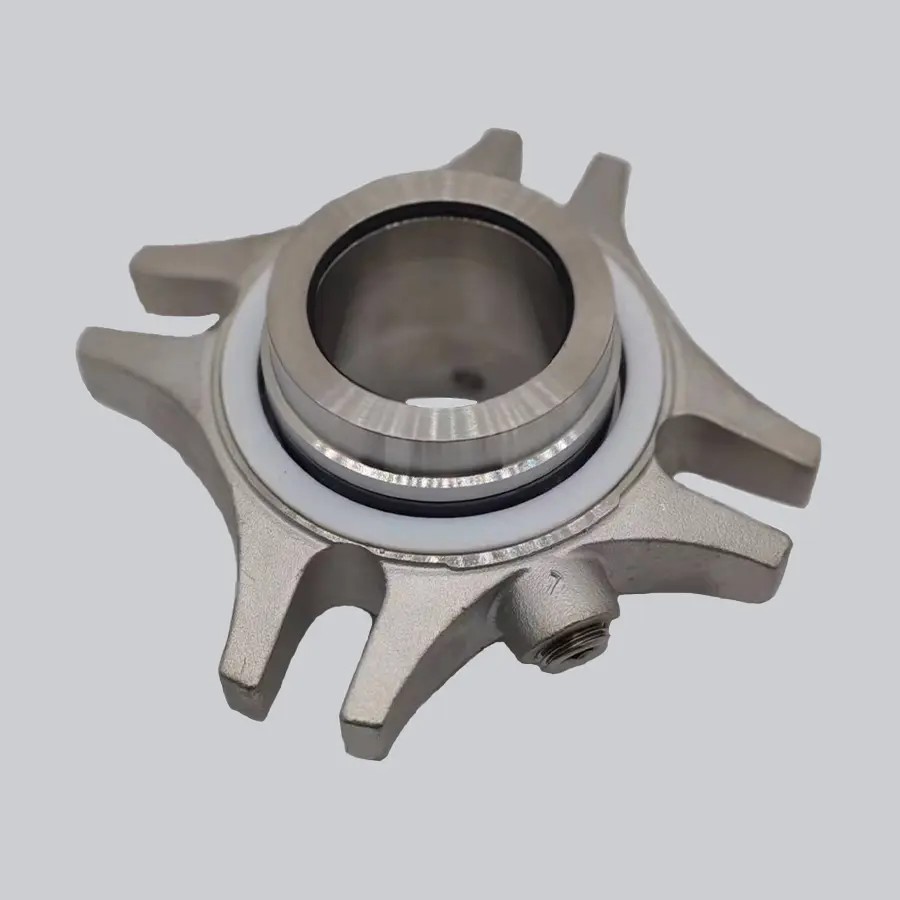

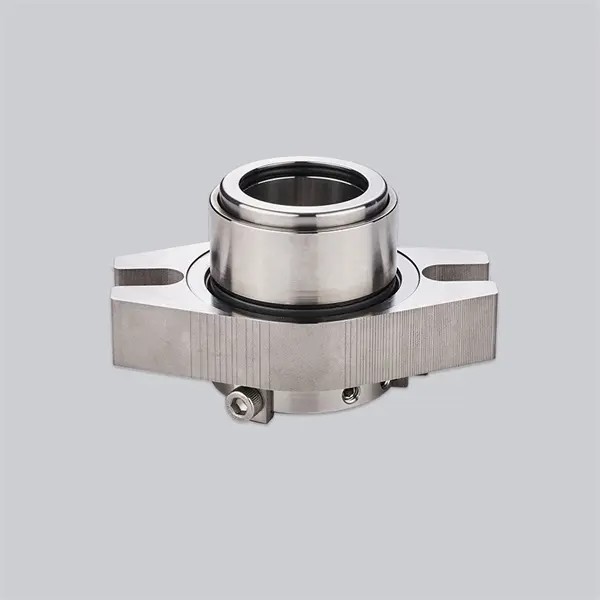

What are cartridge seals?
Cartridge seals are special devices that stop fluids from leaking out of pumps and other machines with spinning parts. These seals come pre-assembled, which means workers do not need to put them together on-site. This design makes installation faster and easier. Cartridge seals help keep pumps running smoothly by blocking leaks and keeping out dirt or other unwanted materials. They also reduce the need for frequent adjustments, which saves time and effort.
Victor stands out as a trusted manufacturer of mechanical seals. The company uses over 27 years of experience to create high-quality products. Victor’s managers focus on improvement and innovation. Their team provides excellent service, reliable products, and competitive prices. Many customers choose Victor because they know they will get strong and dependable seals for their equipment.
How cartridge seals work
Cartridge seals work by forming a tight barrier between the moving shaft and the stationary pump housing. This barrier keeps liquids and gases inside the pump, stopping leaks. The seal has two main faces—one rotates with the shaft, and the other stays still. These faces press together to block the path of the fluid.
Cartridge seals are factory-tested before shipping. This testing ensures they work well and last a long time. Their self-contained design means they need less maintenance than older types of seals. Many industries use cartridge seals because they make repairs quicker and keep machines running longer.
Tip: Cartridge seals often cost less to repair than traditional seals. This makes them a smart choice for companies that want to save money and avoid downtime.
Key components
Cartridge seals have several important parts. Each part has a special job to do. The table below shows the main components and their functions:
| Component | Function |
|---|---|
| Rotating Face | Touches the shaft and spins with it. Made from strong materials like tungsten carbide. |
| Stationary Face | Stays still and presses against the rotating face to make a tight seal. |
| Gland | Holds all the seal parts together and keeps them in the right place. |
| O-rings | Seal the space between the faces. Made from materials like Viton or Nitrile. |
Each part works together to stop leaks and keep the pump safe. Victor uses high-quality materials for these parts. This helps their cartridge seals last longer and work better, even in tough conditions.
Types of cartridge seals
Single cartridge seals
Single cartridge seals are used in many places. They come already put together, so they are easy to install. Workers do not have to set the seal faces or move parts around. This means there are fewer mistakes and it takes less time. Single cartridge seals are good for pumps that move clean water or gentle liquids.
| Feature | Single Cartridge Seals | Other Types |
|---|---|---|
| Pre-mounted design | Yes | No |
| Ease of installation | High | Variable |
| Maintenance costs | Lower | Higher |
| Seal setting errors | Reduced | Higher |
| Reliability over time | More reliable | Variable |
| Initial cost | Higher | Variable |
Many factories use single cartridge seals. Some examples are water treatment plants and power plants.
Victor makes single cartridge seals for many kinds of pumps. Their seals are made from strong materials and are built carefully. This helps pumps last longer and need less fixing.
Double cartridge seals
Double cartridge seals have two sets of sealing faces. This gives extra safety in hard jobs. These seals are best for pumps that move dangerous or high-pressure liquids. Double cartridge seals make pumps safer and more reliable. They stop leaks of harmful stuff and keep pumps working when things get really hot or under a lot of pressure. If the main seal breaks, the backup seal keeps things safe.
Double cartridge seals are good for keeping dangerous liquids inside. They help stop leaks and make chemical plants safer. The backup part keeps things safe if the first seal stops working. This gives workers time to fix the problem and keeps the environment clean.
Victor’s double cartridge seals are great for chemical plants and oil refineries. Their seals help protect people and nature.
Split cartridge seals
Split cartridge seals are simple to put in without taking the pump apart. Workers can put these seals around the shaft in two pieces. This saves time and means machines do not stop for long. Split cartridge seals are good for big pumps or machines where it is hard to take out the shaft.
Victor makes split cartridge seals for tough jobs. Their seals help shipbuilders and pump makers keep machines working with less trouble.
Cartridge seals come in different types for many jobs. Victor has single, double, and split cartridge seals. Their seals help factories work safely and well.
Benefits of cartridge seals
Easy installation and maintenance
Cartridge seals are easy and quick to put in. Workers do not need to measure or line up parts. Each seal is already put together at the factory. It fits right into the pump. This makes fewer mistakes and saves time. When it is time for maintenance, workers can take out the whole seal at once. They do not have to move the pump or spend time fixing the setup.
Some important things about easy installation and maintenance are:
- Pre-assembled design means no hard measuring.
- Modular parts let workers change seals fast without moving the pump.
- Factory setup makes sure the seal works well and lasts longer.
- Maintenance is easy because you remove the whole cartridge.
- The set length helps stop mistakes when putting it in.
Reliable performance
Cartridge seals work well even when things get tough. Engineers make these seals to handle high pressure and heat. They work in many places, like water plants and chemical factories. Easy setup means fewer mistakes, so there are fewer leaks and less time when machines stop. Companies can pick single or double types and choose the best materials for their job.
Cost savings
Using cartridge seals can help companies save a lot of money. Some factories save up to $325,000 each year with new bearing housing seals. It costs about $4,000 to put in an API cartridge mechanical seal. Big plants with many pumps save even more. Cartridge seals also help stop machines from breaking down. When machines stop without warning, it can cause almost 23% of lost work time. With these seals, companies spend less on repairs and keep machines working longer.
Victor gives good prices, strong products, and fast shipping. Their seals help customers save money and keep their equipment safe and working well.
Applications of cartridge seals
Cartridge seals are used in many industries. They help pumps and machines work safely. These seals stop leaks and protect equipment from harm. Many companies use cartridge seals to keep things running smoothly.
Industrial pumps
Factories and plants use cartridge seals in many kinds of pumps. These pumps move liquids and gases in different jobs. Some common pumps are centrifugal pumps, process pumps, mixers, agitators, and compressors. Workers put cartridge seals in systems for chemical processing, water treatment, petrochemical, food and drink, mining, and slurry work.
Chemical processing
Chemical plants use cartridge seals for hard jobs. These seals protect pumps from strong chemicals and high heat. They also help keep work safe and running well. The table below shows how cartridge seals help in chemical processing:
| Feature | Benefit |
|---|---|
| Easier installation | Less downtime and fewer mistakes, so work is faster. |
| Lower maintenance costs | Fewer repairs needed, which saves money. |
| Improved reliability | Works well in tough places, so pumps run better. |
| Compatibility with aggressive chemicals | Good for important jobs in chemical and drug making. |
Cartridge seals are easy to put in and protect pumps from damage. They help stop long breaks and keep work going in busy plants.
Water and wastewater systems
Water plants and wastewater places use cartridge seals to keep things safe. These seals stop leaks and help protect nature. The table below shows why cartridge seals are good for water and wastewater systems:
| Benefit | Description |
|---|---|
| Ease of Installation | Cartridge seals come ready to use, so they are quick and easy to put in. |
| Reduced Maintenance | These seals need less fixing, so there are fewer leaks and lower costs. |
| Enhanced Reliability | Made with strong materials, cartridge seals work well in many conditions and last a long time. |
| Interchangeability | They can often be swapped out, which makes replacing them simple and helps with inventory. |
| Environmental Benefits | By stopping leaks, they help keep the environment safe and follow rules. |
Victor makes mechanical seals for shipbuilders, pump makers, and other industries. Their products help companies meet tough rules and keep work safe and smooth.
FAQ
What is the main purpose of a cartridge seal?
A cartridge seal stops fluids from leaking out of pumps and machines. It keeps equipment safe and helps machines work well.
How long does a cartridge seal usually last?
Most cartridge seals last one to three years. The exact time depends on the pump, the liquid, and how often the machine runs.
Can workers install cartridge seals without special tools?
Yes. Workers can install cartridge seals with basic hand tools. The pre-assembled design makes installation quick and easy.
Where can people use Victor cartridge seals?
People use Victor cartridge seals in factories, water plants, chemical plants, and ships. These seals work well in many types of pumps and machines.
