WMFWT80 Metal Bellow mechanical seals replace Burgmann MFLWT80
Features
• For unstepped shafts
• Single Seal
• Balanced
• Independent of direction of rotation
• Metal bellows rotating
Advantages
• For extreme high temperature ranges
• No dynamically loaded O-Ring
• Self-cleaning effect
• Short installation length possible
• Pumping screw for highly viscous media available (dependent on direction of rotation).
Recommended applications
• Process industry
• Oil and gas industry
• Refining technology
• Petrochemical industry
• Chemical industry
• Pulp and paper industry
• Hot media
• Highly viscous media
• Pumps
• Special rotating equipment
Combination material
STATIONARY RING: CAR/ SIC/ TC
ROTARY RING: CAR/ SIC/ TC
SECONDARY SEAL: GRAQHITE
SPRING AND METAL PARTS: SS/ H-C
BELLOW: AM350

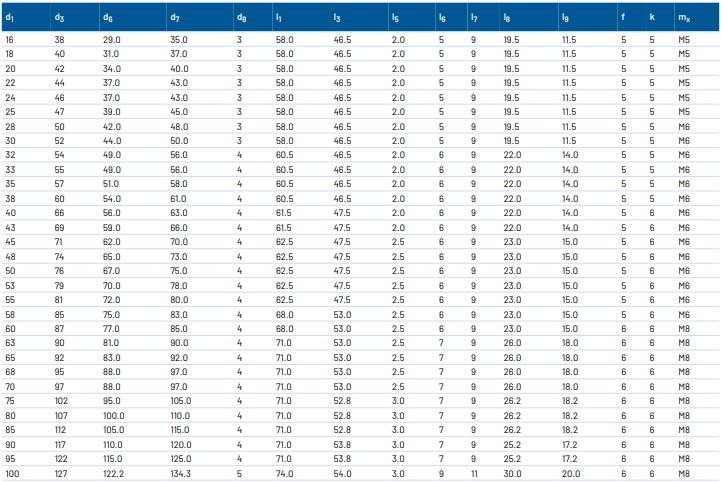

WMFWT80 Data Sheet of Dimension (mm)
