Gland seals are simpler and cheaper but require controlled leakage and regular maintenance, while mechanical seals cost more upfront but generally provide much lower leakage and reduced routine maintenance. This fundamental trade-off is the key to selecting the right sealing technology for your pump.
Key Takeaways
- Gland seals use compressed packing and allow controlled leakage, while mechanical seals use precision faces to minimize visible leakage.
- Gland packing generally has a lower initial cost and is easier to maintain, while mechanical seals require more precise installation but usually need less routine adjustment.
- Gland seals are well suited to abrasive slurry and rugged, low-cost applications where minor leakage is acceptable.
- Mechanical seals are preferred for hazardous, valuable, or leakage-sensitive fluids and high-speed pump applications.
- Choose the sealing method based on fluid properties, solids content, pressure, temperature, speed, leakage requirements, maintenance, and total cost of ownership.
Gland Seal vs. Mechanical Seal: What’s the Difference?
How Gland Seals Work
Modern gland packings use braided synthetic materials such as graphite, PTFE, or aramid. Technicians install these braided rings into a stuffing box around the pump shaft and compress them by tightening a gland. This compression creates a barrier that controls fluid loss. However, gland packing is not designed to stop leaks entirely. A small, controlled amount of fluid must continuously pass through the packing to lubricate the fibers and prevent overheating. If tightened too much, friction causes shaft scoring; if too loose, excessive fluid escapes.

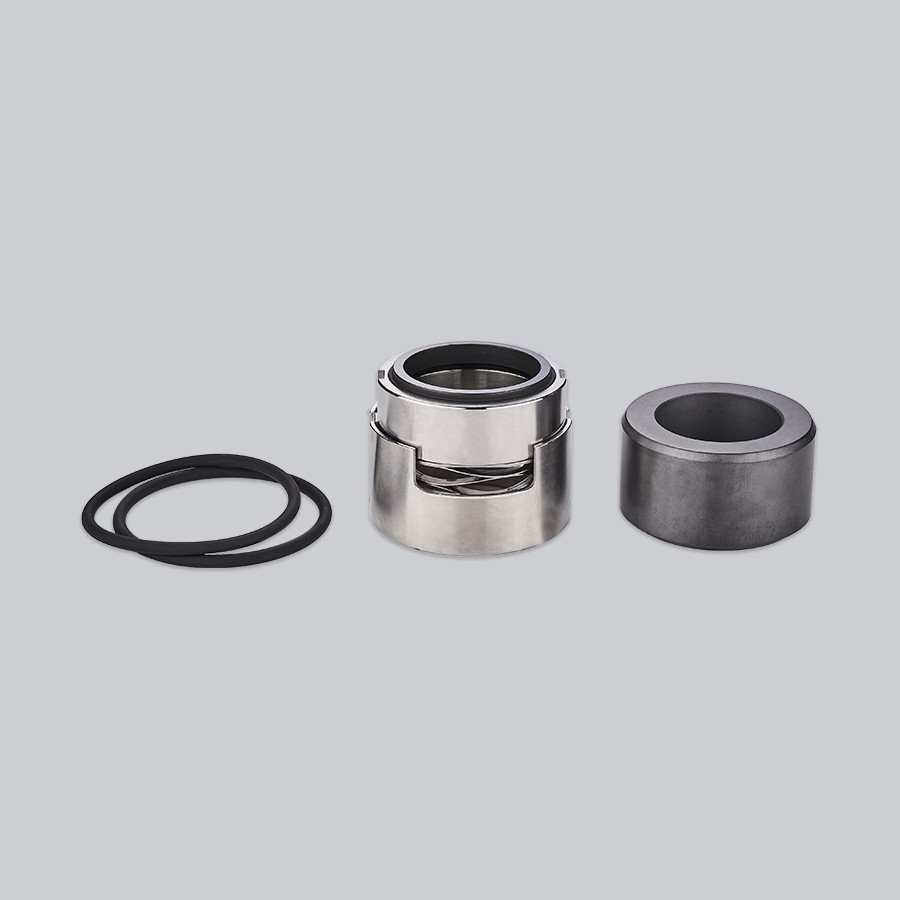

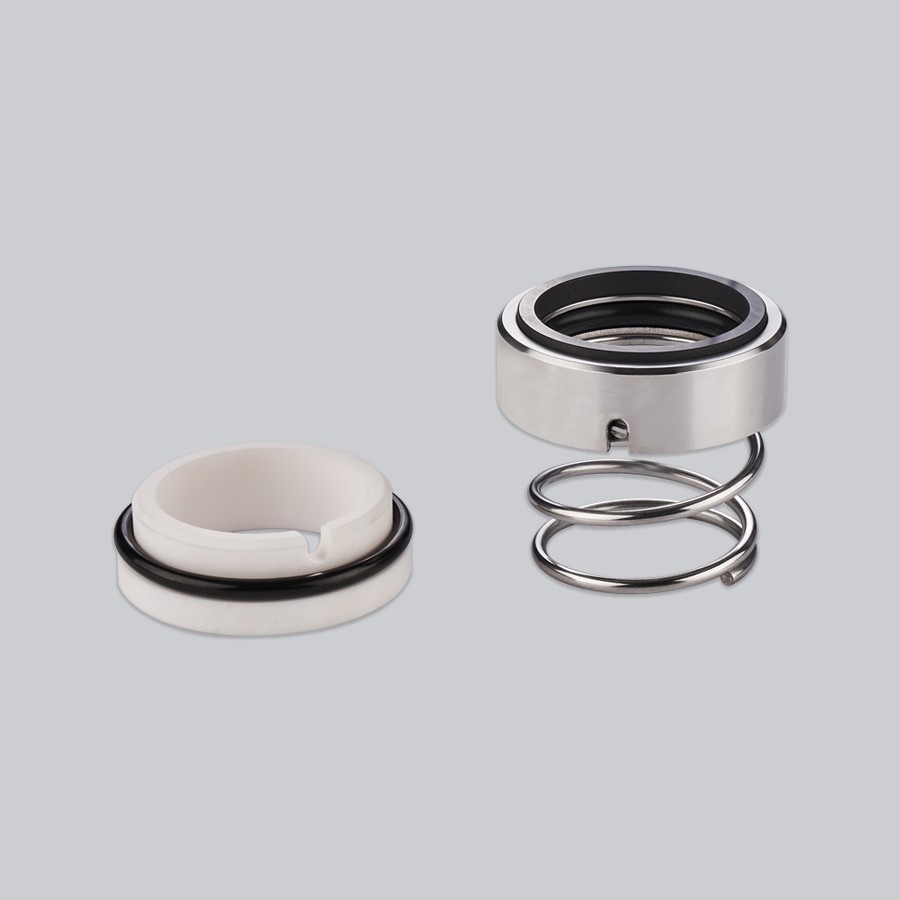

How Mechanical Seals Work
A mechanical seal does not use the pump shaft as a dynamic sealing element. Instead, it relies on two highly polished, flat faces—one rotating with the shaft and the other remaining stationary in the pump housing. Springs or hydraulic pressure press these faces together. During operation, a microscopic fluid film forms between the faces. This hydrodynamic film allows relative movement while creating a nearly leak-tight barrier, aiming to eliminate visible leakage entirely rather than relying on continuous dripping for lubrication.
Gland Seal vs. Mechanical Seal: Key Differences
| Feature | Gland Seal | Mechanical Seal |
| Sealing method | Compressed packing around the shaft | Two precision sealing faces |
| Leakage | Allows controlled leakage | Minimizes leakage |
| Initial cost | Lower | Higher |
| Maintenance | Requires regular adjustment and repacking | Generally requires less routine adjustment |
| Shaft wear | Higher potential for shaft wear | Lower shaft contact |
| Installation | Simpler | More precise |
| Oil and chemical leakage | Less suitable | Better suited to leakage-sensitive applications |
| Slurry service | Often suitable | Depends on seal design and solids |
| Best for | Simple, low-cost, rugged applications | Critical, high-speed, or leakage-sensitive applications |
Which Is Better: Gland Seal or Mechanical Seal?
Mechanical seal manufacturers recommend matching the seal to the pump, fluid, and operating conditions.
When Gland Packing Is the Better Choice
Gland packing remains the top choice for tough, abrasive slurry applications (such as mining and ore processing). Heavy solid particles can quickly penetrate and destroy the precision faces of a mechanical seal. In these harsh conditions, gland packing proves resilient and simple to maintain. It is also highly suitable for older equipment, large water-treatment pumps, marine applications, and scenarios where slow speeds and minor leaks do not pose safety or environmental hazards.
When a Mechanical Seal Is the Better Choice
Mechanical seals are the superior choice when handling valuable, toxic, or hazardous fluids. Facilities subject to strict environmental emission limits (such as EPA regulations for volatile organic compounds) rely on mechanical seals to maintain compliance, as gland packings cannot meet stringent low-leakage requirements. They are the standard for chemical processing, oil and gas, pharmaceuticals, and high-speed centrifugal pumps where long-term reliability and leak prevention are critical.
How to Choose the Right Seal for Your Pump
Consider Fluid and Solids
Clean liquids perform well with either sealing method. However, fluid chemistry dictates the exact material choice. Abrasive slurries heavily favor gland packing unless specialized mechanical seals with hard faces (like sintered silicon carbide) are used. For corrosive or hazardous chemicals, a mechanical seal is almost always required to ensure operator safety and prevent environmental contamination.
Check Pressure, Temperature, and Speed
Always verify the operating limits of your sealing technology. Gland packing materials vary widely—graphite can handle up to 1200°F (650°C) and high pressure, while aramid is limited to 500°F (260°C). Mechanical seals are generally better suited for high-speed shaft rotations, as the friction generated by gland packing at high speeds can cause rapid overheating and failure.
Consider Leakage and Maintenance Requirements
Assess what your facility can tolerate. If a small, continuous leak of the pumped fluid is acceptable and your maintenance team is equipped to perform regular tightening and repacking, a gland seal is viable. If you require a clean environment with zero visible leakage and want to free up maintenance staff for other tasks, opt for a mechanical seal.
Compare Total Cost of Ownership
Look beyond the purchase price. For a non-critical utility water pump, the low initial cost of gland packing makes financial sense. For a critical process pump handling expensive chemicals, the reduced product loss, lower energy consumption, and longer intervals between maintenance usually make OEM mechanical seals a better long-term investment.
FAQ
How often should workers replace gland packing?
Gland packing usually requires replacement every 3 to 6 months in continuous-duty pumps. The exact lifespan depends on shaft speed, operating pressure, temperature, and fluid abrasiveness. Workers should inspect the packing monthly and replace it when tightening the gland no longer controls the leakage rate.
Can a pump switch from gland packing to a mechanical seal?
Yes, most centrifugal pumps can be retrofitted from gland packing to a mechanical seal. The conversion usually requires a sleeve adapter or a new seal chamber. Many manufacturers offer pre-assembled cartridge seal kits specifically designed to drop into existing stuffing boxes, simplifying the upgrade process.
What causes premature mechanical seal failure?
The most common causes of premature failure are dry running (operating the pump without fluid), improper installation, shaft misalignment, and severe pump vibration (cavitation). Because the sealing faces are precision-lapped, any distortion or lack of lubrication will quickly cause the seal to crack or leak.
Does gland packing damage pump shafts?
It can. Because gland packing acts essentially as a friction brake squeezed against the rotating shaft, it naturally causes wear over time. Overtightening the gland to stop a leak will accelerate this scoring. To mitigate this, most pumps use a replaceable shaft sleeve so the actual pump shaft remains undamaged.
